Custom Razor Wire Coils BTO and CBT

Custom Razor Wire Coils BTO and CBT Description:

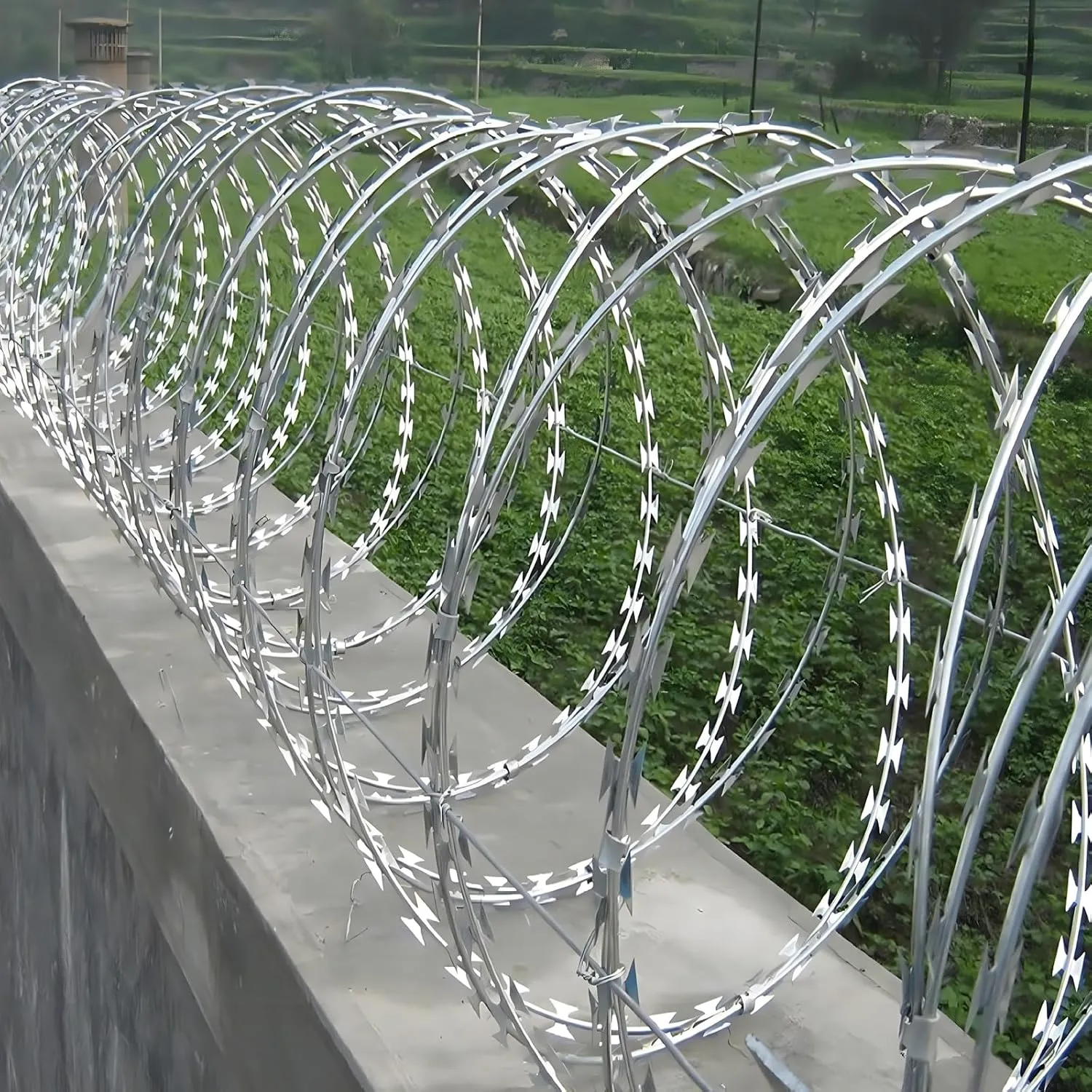

Custom concertina razor wire is supplied in clipped coils for high security razor wire projects, with BTO or CBT blades and galvanized or stainless steel construction.



Custom Razor Wire Specifications:



Item	Specification
Blade profile	BTO or CBT, selected by model and drawing
Blade thickness	0.5 mm reference; final thickness and tolerance by profile
Core wire diameter	2.0–2.5 mm / approximately 0.079–0.098 in
Coil outside diameter	450–1,500 mm / approximately 17.7–59.1 in
Loop count	30–108, depending on configuration
Extended length	Confirmed at the specified loop spacing
Clip quantity	Defined by the connection drawing
Material	Galvanized carbon steel or specified stainless steel grade
Coil weight	Target weight and tolerance confirmed per specification



Blade Profile Selection

Models include BTO-10, BTO-12, BTO-18, BTO-22, BTO-25, BTO-28, BTO-30, CBT-60, and CBT-65.

Blade Thickness and Size

The approved drawing records strip thickness, blade length, width, spacing, and tolerances.

Core Wire Diameter

Core diameter and tensile strength are specified independently of blade-strip thickness.

Coil Diameter

Orders identify whether the diameter applies to the packed or extended coil.

Loop Count and Extended Length

Coverage length is stated with the loop count and installation spacing, not as an unrestricted maximum stretch.

Clip Quantity

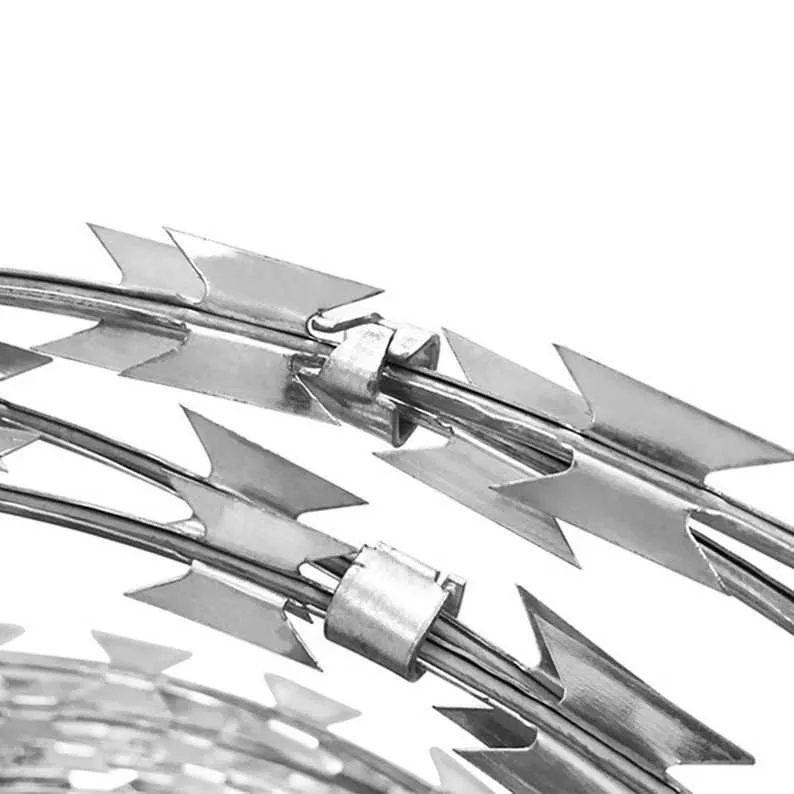

The connection drawing lists clip positions, clip material, and total clips per coil.





Galvanized and Stainless Steel Options:



Galvanized Carbon Steel Razor Wire

Both the blade strip and core wire are zinc-coated. Coating requirements are recorded separately for each component.

Stainless Steel Razor Wire

Available grades include 304, 304L, 316, and 316L. The order identifies the grade of the blade strip, core wire, and clips.

Choosing Materials for Outdoor Conditions

Material selection accounts for salt exposure, persistent moisture, and chemical contact. Coastal and industrial orders require a confirmed material grade and coating specification.





CNC-Controlled Coil Length and Loop Count with Individual Weight Checks:



Electronic numerical controls set wire-feed length and loop count using the approved order parameters. Repeat orders use the same settings unless the specification changes.

Each finished coil is weighed manually against its target weight. Deviations prompt checks for missing loops, insufficient wire length, or other discrepancies. Weighing supplements direct length and loop-count control; it does not replace them.





OEM Packaging and Project Labels:



As an OEM razor wire supplier, we use buyer-approved label artwork and packing instructions.

Private Labels

Labels can include the buyer’s brand, product code, barcode, and handling information.

Coil Identification

Coil labels record the blade model, material, diameter, loop count, specified coverage, weight, and batch number.

Pallet Marks

Marks identify the purchase order, project, pallet number, coil quantity, gross weight, and destination.

Project-Based Packaging

Coils are grouped by installation section or delivery batch. Paper-lined woven bags, cartons, and pallet packing are specified on the order, with contents listed by package or pallet.
